Technical features
Customization Options:The flexibility to tweak the hardware around your specific workflow is one of the best things about the S-Series. We offer a rapid-approach setup alongside variable feed mechanisms so you can fast-track your material handling and cutoff runs. Throwing in the optional laser alignment system takes the guesswork out of lining up your cut marks, ensuring the machine adapts easily to whatever job ticket lands on your desk.
Scissor-Style (Hinged) Structure:A rugged hinged frame paired up with a heavy-duty worm gear drive forms the backbone of this band saw. This mechanical combination doesn't just keep the machine dead-stable while chewing through metal—it honestly makes the whole cutting process way more efficient. Scissor-style saws are a shop favorite for a reason: they are incredibly reliable and handle a wide variety of metal profiles without demanding a complicated setup.
Built for Small and Medium Stock:The S-Series is specifically dimensioned to tackle small to medium-sized metal profiles, including rods, tubes, and square blocks. It runs highly efficiently and saves a good chunk of power, making it ideal for manufacturers who work with these material sizes day in and day out. It handles various steel and alloy profiles beautifully, giving your facility a highly versatile tool for any standard metalworking run.
Components and Systems Under the Hood

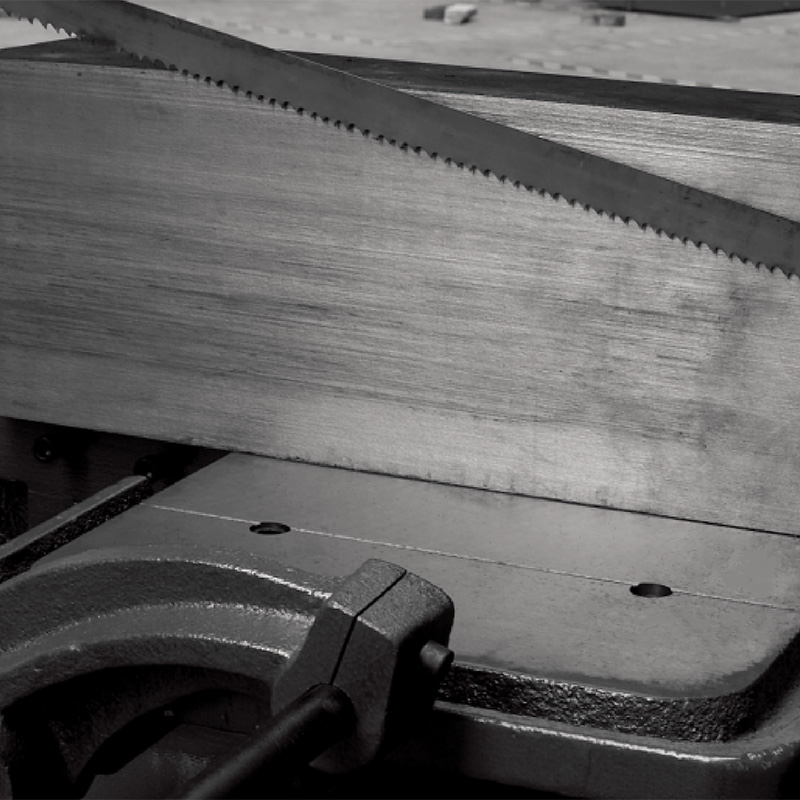

The Machine Base: This packs together the main foundation, the saw frame, the work-holding vise, and the blade guides. It's a completely heavy, rigid build that stops the saw head from chattering mid-cut and keeps your tolerances dead-on straight.
The Drive System: The transmission layout delivers smooth, seamless power from the motor straight to the band blade. Going with a rugged worm gear setup increases the overall durability, meaning you get highly reliable performance shift after shift without teeth stripping.
The Hydraulic System: The hydraulics manage both the downfeed cylinder movement and the tight vise clamping pressure, which is exactly how you keep your cutting speeds fast and your part dimensions locked in.
Electrical Control System: The onboard electrical panel handles the machine's daily operation and links up whatever customizable options you add on. It's laid out for fast, user-friendly adjustments so your team can tweak cutting parameters without a headache.
Cooling and Lubrication Layout: The flood coolant lines are essential for keeping the blade temperatures down and flushing out metal swarf. It stops your expensive tooling from wearing out prematurely and leaves a nice, clean finish on the cut face.
Safety Guards: The machine is wrapped in robust safety protection devices to look out for your operators, cutting down on-the-job risks and keeping your shop floor fully compliant with standard industrial safety codes.
The Machinist's Perspective
When you look at the articulated band saw industry as a whole, the S-Series represents a big step forward in everyday efficiency and adaptability. Coupling a simple hinged frame with modular, customizable features hits the sweet spot for modern metalworking shops. The scissor layout keeps the operation grounded, and the fact that it isn't finicky about different metal profiles makes it a highly valuable asset for small-to-medium fabrication setups.
|
Model |
GB4030 |
|
Cutting Range(mm) |
Φ300■400×240 |
|
Saw Blade Size(mm) |
3505×27×0.9 |
|
Feeding Speed |
Stepless Speed Control |
|
Saw Blade Speed(m/min) |
28.42.53.74 |
|
Total Power(kw) |
2.79 |
|
Fastening Mode |
Hydraulic |
|
Overall Size(mm) |
1800×900×1300 |
